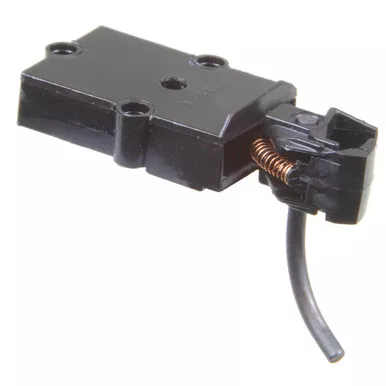

Kadee 802 Plastic Couplers & Plastic Gearboxes – Black – S Scale
This industry leading coupler features Plastic Couplers, and 846 S Scale centering spring and comes complete with Plastic Gearboxes and lids.
0-48
Mounting Screws are included.
S-Scale
Simple Drop in Design
Trouble Free Operation
World-Renowned Quality & Performance
They just Last & Last & Last…
Package Includes:
(4) Each 802 Plastic Couplers – Black
(4) Each 802 Plastic Gearboxes & lids – Black
(6) Each 846 S Scale Centering Springs
(2) Extra 847 S Scale Knuckle Springs
(8) Each 0-48 x 3/8 Screws
(8) Each 0-48 x 1/4 Screws
802 Plastic Coupler Features:
Material – Plastic
Shank Length – (9/32″) (Back of head to center hole of Draft Gearbox)
Coupler Offset – Centerset
Centering Spring – 846 S Scale Centering Springs
Knuckle Spring – 847 S Scale Knuckle Springs
Works In Place of – 808 Couplers
Works With – S Scale Draft Gearboxes
802 Plastic Draft Gearboxes & Lids Features:
Material – Plastic
Dimensions – 37/64″L x 3/8″W x 11/64″H
Works With – 808 Couplers
Mounting Specifications:
Mounting Height – 19/32″
Centerline – 17/32″
Trip Pin Height – 1/16″
Mounting Holes – 0-48 or 0-80 screws are the most commonly used screws. (Screw length will vary)
Recommended Tools:
814 S Scale Coupler Height Gauge
231 Greas-em Dry Graphite Lubricant
237 Coupler Trip Pin Pliers
240 Double Headed Pin Vise
241 Dual Tool Manual Uncoupling Tool and Spring Pick
246 Tap (2-56) and Drills (50 and 43)
