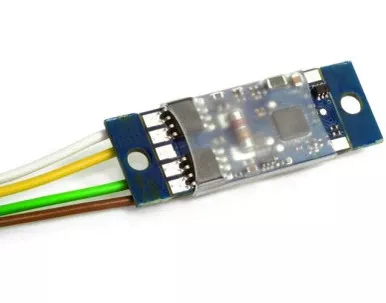

Massoth ~ eMOTION M ~ G, O, S & HO Scale ~ Tiny 1.2 Amp DCC Motor Decoder ~ 8154501
Tiny driving decoder for very small installation space offering 1.2amp motor load with 5 functions connections for other connections including servo control. Designed for small engines as industrial field railway locomotives, etc. Designed for parallel and serial operation, compatible with LGB MTS. Direct Buffer Control connection.
Especially small 1.2 amp driving decoder with 6 function outputs, suitable for small locomotives with 1 motor. The eMOTION M locomotive decoder is an NMRA/DCC compatible locomotive decoder, which with its particularly small dimensions is suitable for retrofitting and direct connection to a gearbox (4 pins) in very small locomotives: e.g. small garden railway locomotives, but also locomotives of smaller tracks, e.g. H0. Its total power handling capacity is max. 1.8 amps. The decoder has 5 function outputs. With an additional voltage buffer, it can perform its service in analogue and digital mode even more safely and thus avoids being exposed to dirty spots on the track.
The features of the eMOTION M locomotive decoder at a glance:
14, 28 and 128 speed stepsMotor output loadable with 1.2Aprogrammable travel curveAdjustable starting, middle and maximum speed (as well as delay times)serial and parallel control for all light and function outputsControl of parallel data updates (LGB®)Digital and analog operation with automatic recognitioncompatible to NMRA DCC and LGB MZS (all generations)Latest generation load control (for digital and analogue operation)adjustable motor frequency (70Hz – 16 kHz)2 light connections (front, rear) max. 0.3A each5 function outputs (2 x 0.3A, 2 x 0.05A and 1 x 0.01A (5V))Connection for a model making servoLight and function outputs can be dimmed and activated in analog modeprogrammable flashing light and short time functionShunting mode and delay times can be switched via function keysimple function mapping with direction assignmentall function outputs freely addressable (F1 to F16)Integrated voltage buffer connection for smooth running (accessory: 8151001 or 8151501)Overload and temperature protection for motor and function outputsReset function for all CV valuesRead CVCV WriteWrite CV bit by bitCV indirect (by register programming for older digital systems)direct register programming (CV 1 – CV4)POM – Program on Main (programming on the track)
