TCS ~ EUN651P-30 Small DCC Tiny Micro Motor Decoder ~ 6 Pin ~ 1937

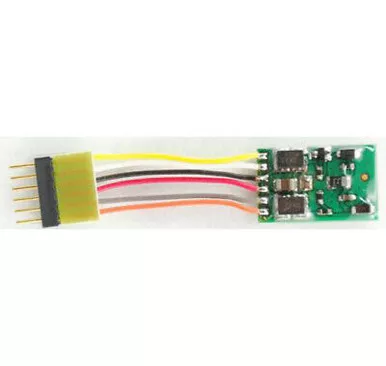

TCS EUN651P-30 Decoder ~ 0.544″ x 0.345″ x 0.112″ ~ N Scale ~ 1937This decoder is compatible with the NEM651 standard interface found in some N-scale Bachmann and Fox Valley Models locomotives. The EUN651P-30 is wired to a 30mm harness terminated in a 6-pin NEM plug.Back EMF Load Compensation:Provides superior slow speed control and high performance under load.Quiet Drive:Super-quiet motor control for “buzz” free motor performance.DC Mode:Decoder will automatically detect DC power. You can also configure how your lighting effects function on DC.Variable Momentum:Allows you to make custom acceleration and deceleration curves.Incandescent Bulb Support:This decoder can be used with 12 Volt bulbs.Function Remapping:Buttons 0 through 12 may be used to control the lighting functions of this decoder.Programmable Lighting Effects:Choose from 20 separate user-programmable lighting effects!Dimmable Brightness:Configure multiple different brightness levels for your LED’s or incandescent bulbs.Decoder Lock:Feature which prevents accidental/unwanted programming while activated.Airwire™ Compatible:Fully compatible with Airwire™ operation.User-Loadable Speed Tables:Configure custom speed curves and set speed limits.Specifications:Interface TypeDirect-Plug (NEM651)Dimensions (L x W x H): 0.544″ x 0.345″ x 0.112″ or 13.82mm x 8.76mm x 2.84mmScale: N ScaleContinuous/Peak: 1.0/2.0 AmpTotal Functions: 2Function Rating: 80 mA12V Outputs: 2
